Description

Overview & Power Delivery

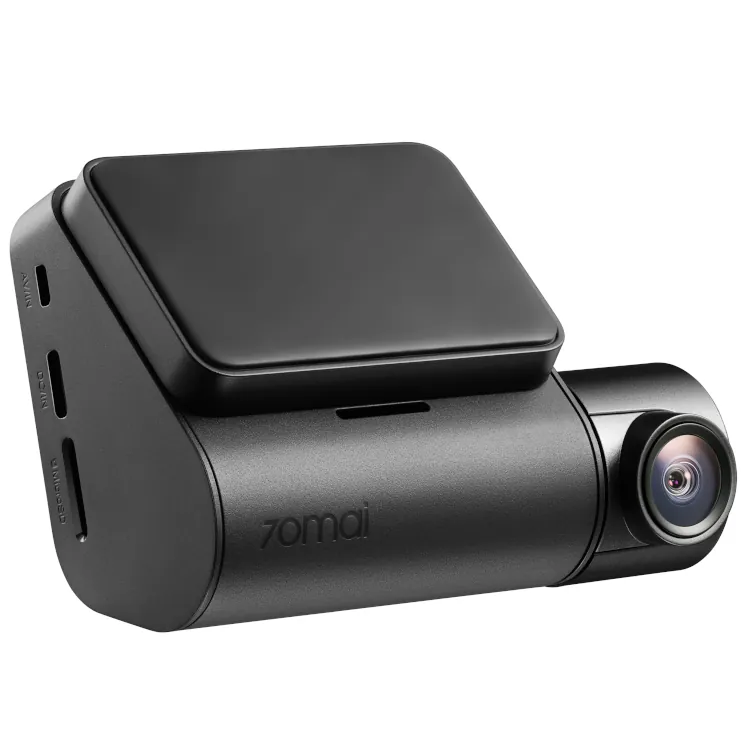

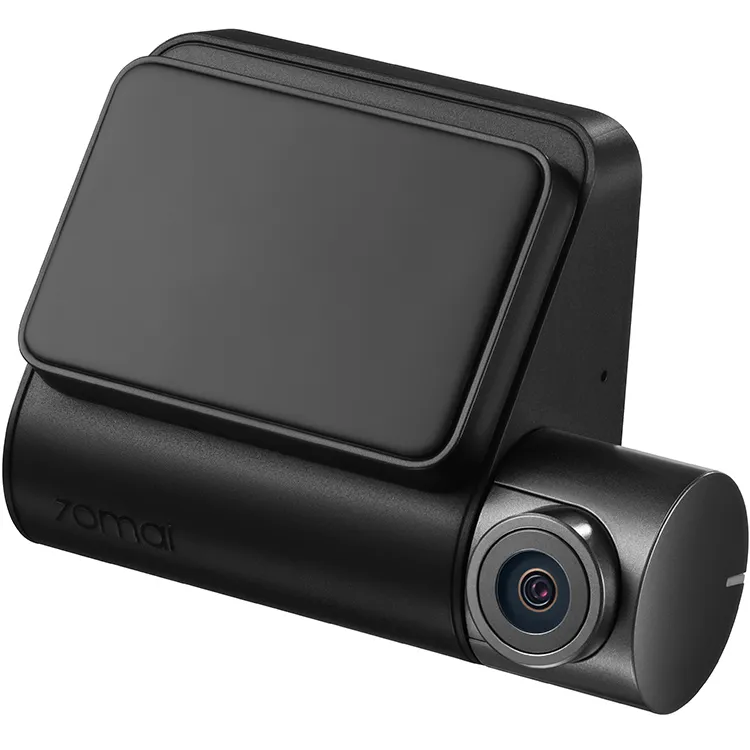

The 70mai Dash Cam A200 Dual Set with the RC11 Rear Camera represents a significant engineering advancement over previous generations, setting a benchmark for dual-channel automotive surveillance. Equipped with the high-performance Novatek NT96565 image processing chip and sensitive GalaxyCore sensors (GC2093 on the front unit and GC2053 on the rear), this system captures road scenes in full 1080p resolution at 60 frames per second on the primary channel. High-speed recording at 60 FPS is critical for capturing high-velocity incidents, allowing license plates, traffic signals, and lane markings to be frozen with crystal clarity without motion blur.

Visual performance in challenging lighting is bolstered by proprietary MaiColor Vivid+ Solution™ and 70mai Night Owl Vision™ algorithms. Working in synergy with hardware HDR and an expansive F2.0 aperture, the front camera balances sharp contrast in high-glare environments—such as entering or exiting tunnels—while mitigating headlamp flare and reflections off the windshield. Across all three lanes of traffic covered by the 130-degree wide-angle lens, the A200 continuously manages exposure, color fidelity, and sensor gain to produce legally credible, tamper-resistant video documentation.

Reliable power delivery is central to the design of the 70mai A200. The device operates from standard 12V automotive electrical architectures via an efficient USB-C power converter delivering 5V/2A regulated current. An integrated 500 mAh internal high-temperature lithium-ion cell provides critical power buffering, ensuring that active video files are safely closed and saved to non-volatile memory in the event of an abrupt power severance during a severe collision. For continuous 24-hour parking surveillance, the system is designed to pair with optional 12V hardwire kits (UP03 or OBD-II adapters) that incorporate low-voltage battery protection to safeguard the host vehicle\’s starter battery from excessive discharge.

Technical Specifications

Vehicle Compatibility & Start-Stop Demands

Modern passenger cars, light commercial vehicles, and hybrid fleets place rigorous demands on auxiliary electronics. Vehicles equipped with automatic Start-Stop systems routinely experience transient voltage drops and electrical spikes during high-draw engine restart cycles. The 70mai A200 power circuitry is engineered to handle fluctuations within the 12V electrical bus, maintaining stable operation without unexpected reboots or corrupted recordings when the internal combustion engine cycles at intersections.

When wired for permanent parking protection using a dedicated 12V hardwire kit (such as the 70mai Hardwire Kit UP03 or OBD-II power module), the system draws minimal quiescent standby current. The hardwire interface features an automatic low-voltage cutoff threshold (typically 11.4V to 11.8V for 12V lead-acid and AGM batteries), which interrupts parasitic draw long before the starter battery reaches an undervoltage state that could prevent engine cranking. This feature makes the A200 fully compatible with AGM, EFB, and standard flooded starting batteries across European, Asian, and American vehicle platforms.

In time-lapse parking surveillance mode, the A200 compresses 30 minutes of continuous footage into a 1-minute video stream recorded at 1 FPS. This drastically reduces the write cycles on the MicroSD card while slashing processor power consumption, minimizing thermal buildup and preserving battery reserves during extended post-ignition parking periods.

Installation & Care Guidelines

Proper mechanical mounting and wiring are vital for optimal performance and road safety. Install the front A200 camera near the center of the windshield behind the rearview mirror using the included electrostatic sticker. This transparent barrier adheres firmly without damaging factory window tints or leaving adhesive residue upon removal. Route the primary USB-C power lead and the rear RC11 coaxial interconnect harness behind the vehicle interior headliner, A-pillar trim, and weatherstripping using the supplied plastic pry tool.

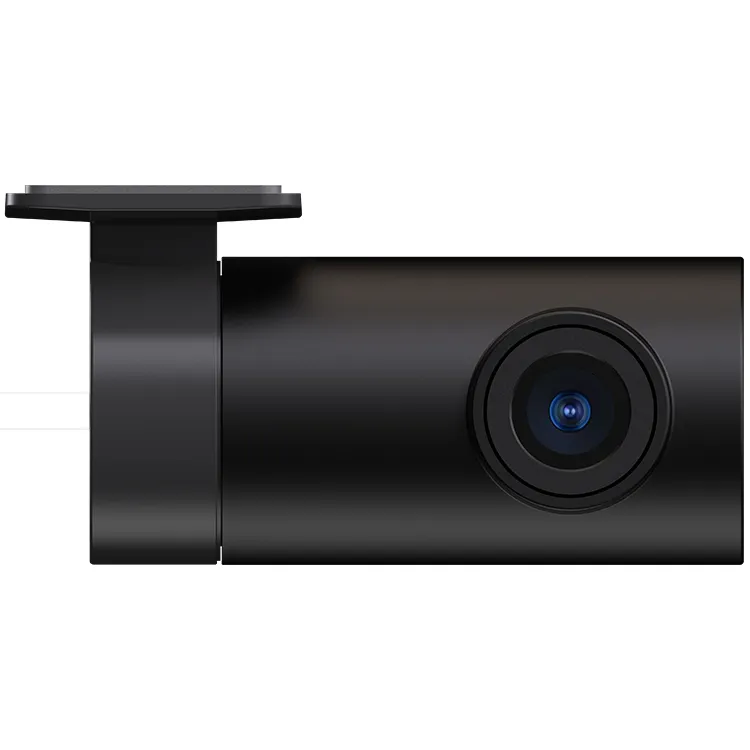

When running cables past the A-pillar, ensure the harness is routed behind side curtain airbag modules rather than draped across them, preventing interference with deployment in an accident. Mount the RC11 rear camera high on the rear glass within the swept area of the rear wiper blade to ensure unobstructed rear recording during rain or snow. Connect the rear cable directly to the designated AV-in port on the primary A200 housing.

For optimal reliability, format the MicroSD card directly within the 70mai mobile application upon first use. Regularly inspect and clean the exterior glass surfaces corresponding to both camera lenses. Avoid exposing the camera to sustained internal cabin temperatures exceeding 60°C, and periodically verify firmware updates via the official 70mai iOS/Android app over the integrated Wi-Fi connection.

Frequently Asked Questions (FAQs)

Does the 70mai A200 dual set drain my vehicle\’s 12V battery when parked?

When connected to a standard 12V auxiliary accessory socket (cigarette lighter), the camera powers down immediately when vehicle ignition is switched off, consuming zero standby power. If installed with an optional 70mai Hardwire Kit for 24-hour parking surveillance, the kit incorporates a built-in low-voltage safety shutoff that cuts power if vehicle battery voltage drops below a safe threshold, preventing starting issues.

Can the front camera record at 60 FPS while the rear camera is connected?

Yes. The Novatek NT96565 image processor provides independent dual-channel encoding. The front camera can run at 1080p at 60 FPS for fluid dynamic capture or at 1080p 30 FPS with hardware HDR enabled, while the RC11 rear camera simultaneously records in 1080p at 25 FPS.

What type of MicroSD card is required for the 70mai A200?

The system requires a MicroSD card with a capacity between 32GB and 128GB. Because the dual-channel configuration continuously streams high-bitrate Full HD video from both cameras, cards rated at Class 10, UHS-I U3 or higher with high-endurance MLC or 3D TLC flash NAND are strongly recommended.

How does the emergency collision recording function work?

The A200 contains an internal tri-axial G-sensor that detects sharp deceleration, impacts, or physical shocks. When an event threshold is reached, the camera automatically locks the ongoing video sequence into a protected event folder that cannot be overwritten by regular loop recording. If an impact occurs while parked, the user receives an audible voice alert upon the next vehicle start.

Is the 70mai mobile application required to operate the dash cam?

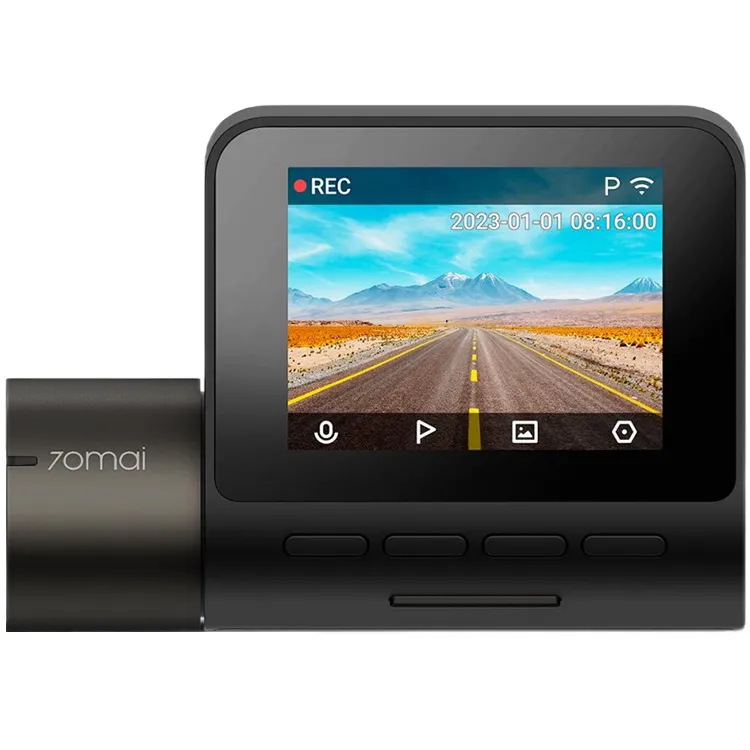

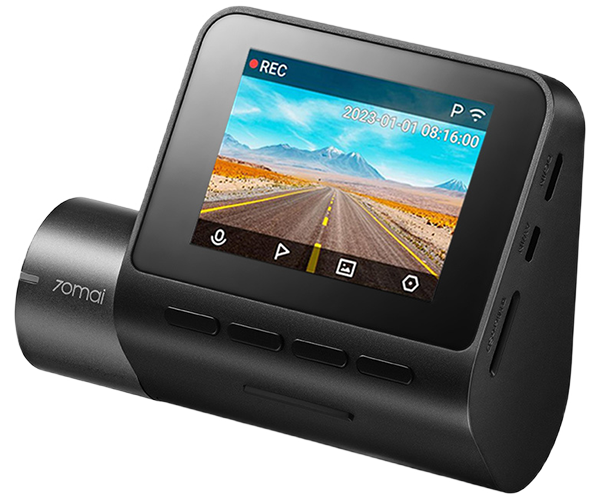

While the 2.0-inch IPS color screen and physical buttons allow full standalone navigation of onboard menus and live viewing, the 70mai app (available for Android and iOS) provides convenient high-speed Wi-Fi access to preview, download, and share video clips, configure G-sensor sensitivity, and install firmware updates directly from a smartphone.
