Description

Overview & Power Delivery

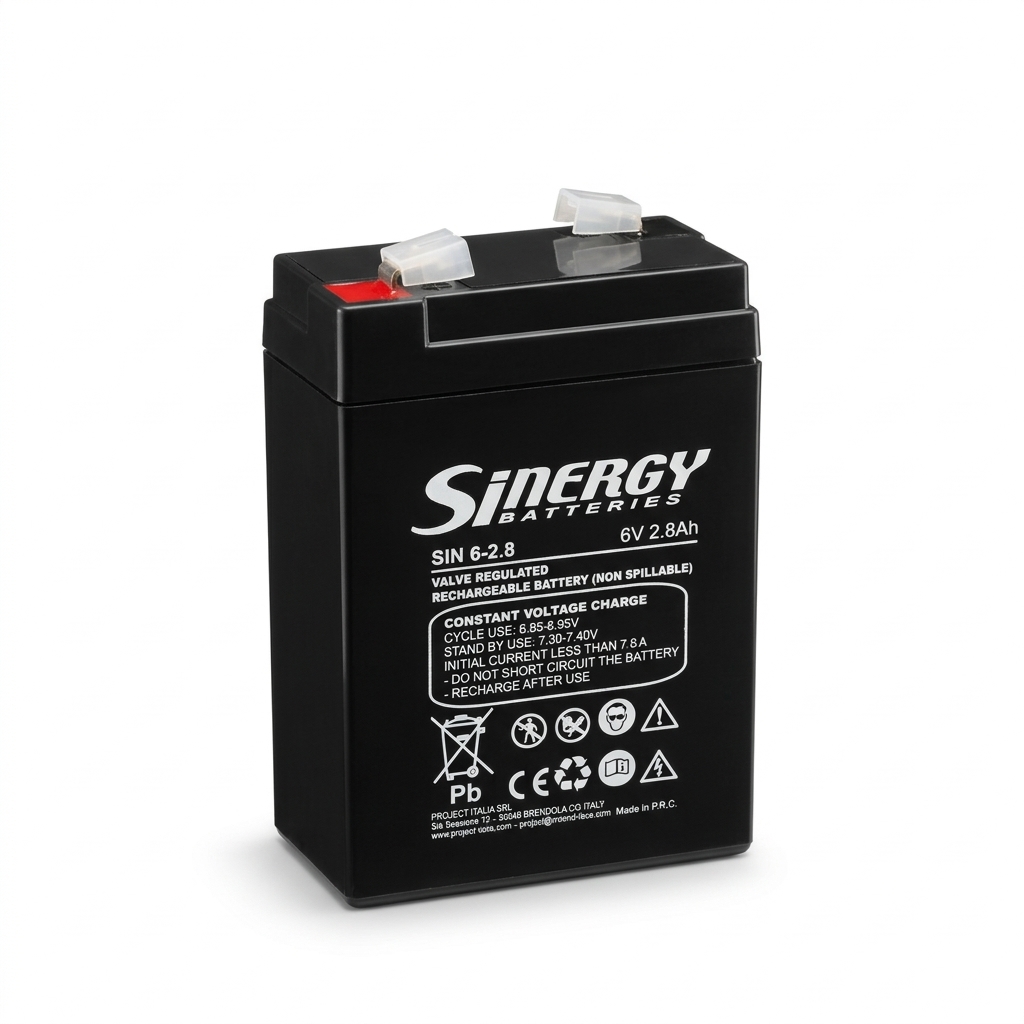

The Sinergy SIN6-28 6V VRLA battery is precision-engineered to deliver robust, uninterrupted electrical energy across both cyclic and floating charge environments. Designed with a true 3-cell internal configuration delivering 2.0V per cell, this compact powerhouse outputs a nominal 6V potential tailored for micro-mobility, vintage electrical architectures, emergency backup systems, and sensitive electronic instrumentation. Utilizing advanced Valve Regulated Lead-Acid (VRLA) chemistry paired with Absorbent Glass Mat (AGM) separators, the SIN6-28 immobilizes the sulfuric acid electrolyte within micro-porous glass fiber mats, achieving a completely spill-proof, maintenance-free operational life.

Internally, the Sinergy SIN6-28 features high-purity lead-calcium-tin grid alloys that drastically suppress internal grid corrosion, hydrogen gas evolution, and self-discharge rates. This refined metallurgical formulation ensures the battery retains its charge during extended shelf storage while providing swift electrochemical response during sudden, high-draw discharge spikes. The integrated one-way rubber safety release valves are engineered to regulate internal pressure dynamically, opening only during abnormal overcharge scenarios to release excess pressure before hermetically resealing, thereby eliminating any risk of atmospheric contamination or dry-out.

With an ultralight structural mass of just 0.54 kg and compact dimensions measuring 66 mm in length, 34 mm in width, and 97 mm in total height, this unit delivers exceptional volumetric energy density. Reinforced plate packs coupled with compressive cell design ensure unparalleled resistance against mechanical shock, harmonic engine resonance, and continuous chassis vibrations. Whether deployed in harsh ambient conditions or stationary power cabinets, the SIN6-28 maintains steady terminal voltage, low internal resistance, and sustained cyclic endurance throughout its entire service life.

Technical Specifications

Vehicle Compatibility & Start-Stop Demands

While the Sinergy SIN6-28 is not designed for modern automotive 12V starter circuits or complex micro-hybrid Start-Stop vehicle platforms, it fulfills an essential niche in specialized automotive, powersports, and peripheral electrical applications. In the powersports domain, it provides a direct, highly dependable replacement for legacy 6V micro-scooters, vintage mopeds, motorized recreational toys, utility robotics, and auxiliary telemetry tracking modules. Its sealed, non-spillable AGM layout permits safe installation in non-traditional angles, ensuring reliable operation even when leaned or subjected to sharp turns.

Beyond powersports, the SIN6-28 serves as a cornerstone power reserve for auxiliary support systems. It is broadly utilized in commercial fire alarm panels, emergency egress lighting, portable medical diagnostic equipment, telemetry beacons, and automated uninterruptible power supply (UPS) backups. Because the battery maintains minimal internal impedance, it easily handles instant load transitions without triggering sudden voltage drops, safeguarding attached microprocessors and sensitive electronics from erratic reboots or signal loss.

Installation & Care Guidelines

Installing the Sinergy SIN6-28 is straightforward due to its compact profile and standardized F1 push-on Faston terminals. When installing, always inspect the receptacle terminals for dirt, oxidation, or physical distortion. Fasten the female crimp terminals firmly over the 4.75 mm male tabs to establish a tight, low-resistance electrical connection. To avoid short-circuits, ensure the red positive (+) and black negative (-) polarities are verified with a digital multimeter before completing circuit engagement.

For optimal cycle longevity, charge the battery using a voltage-regulated, microprocessor-controlled smart charger specifically calibrated for 6V AGM batteries. Avoid using unregulated automotive bench chargers designed for standard 12V wet cells, as over-voltage will compromise the sealed VRLA safety valves and cause premature cell dry-out. For winter storage or idle seasonal periods, disconnect the terminal leads and maintain the battery in a cool, dry area at full charge, performing top-up charges every three to six months to prevent harmful lead-sulfate crystallization on the grid plates.

Frequently Asked Questions (FAQs)

Can the Sinergy SIN6-28 be used in a 12V automotive start-stop vehicle?

No. The Sinergy SIN6-28 is a 6V (3-cell) battery with a 2.8Ah rating, making it incompatible with 12V passenger vehicle starter motors or automotive micro-hybrid start-stop systems. It is specifically designed for 6V standby systems, emergency lighting, small powersports, and vintage or auxiliary electronics.

What does the 3-cell construction mean for this battery?

Lead-acid electrochemical chemistry provides exactly 2.0 volts nominal per individual cell. The SIN6-28 incorporates three interconnected cells (3 x 2.0V = 6.0V nominal). In contrast, 12V automotive batteries incorporate six cells.

Does this battery require refilling with distilled water?

No. The SIN6-28 is a factory-sealed VRLA (Valve Regulated Lead-Acid) battery with absorbed glass mat separators. Oxygen recombinations occur internally during normal operation, making the battery completely maintenance-free and sealed against water addition.

What type of terminals are fitted to the Sinergy SIN6-28?

The battery is equipped with standard F1 Faston spade terminals measuring 4.75 mm (0.187 inches) in width, which accept conventional slip-on female spade connectors commonly found in backup and powersports wiring harnesses.

Can I connect two Sinergy SIN6-28 batteries in series to get 12V?

Yes. Connecting two identical SIN6-28 6V 2.8Ah batteries in series (positive of the first connected to the negative of the second) produces a combined 12V output while retaining the 2.8Ah capacity rating.
